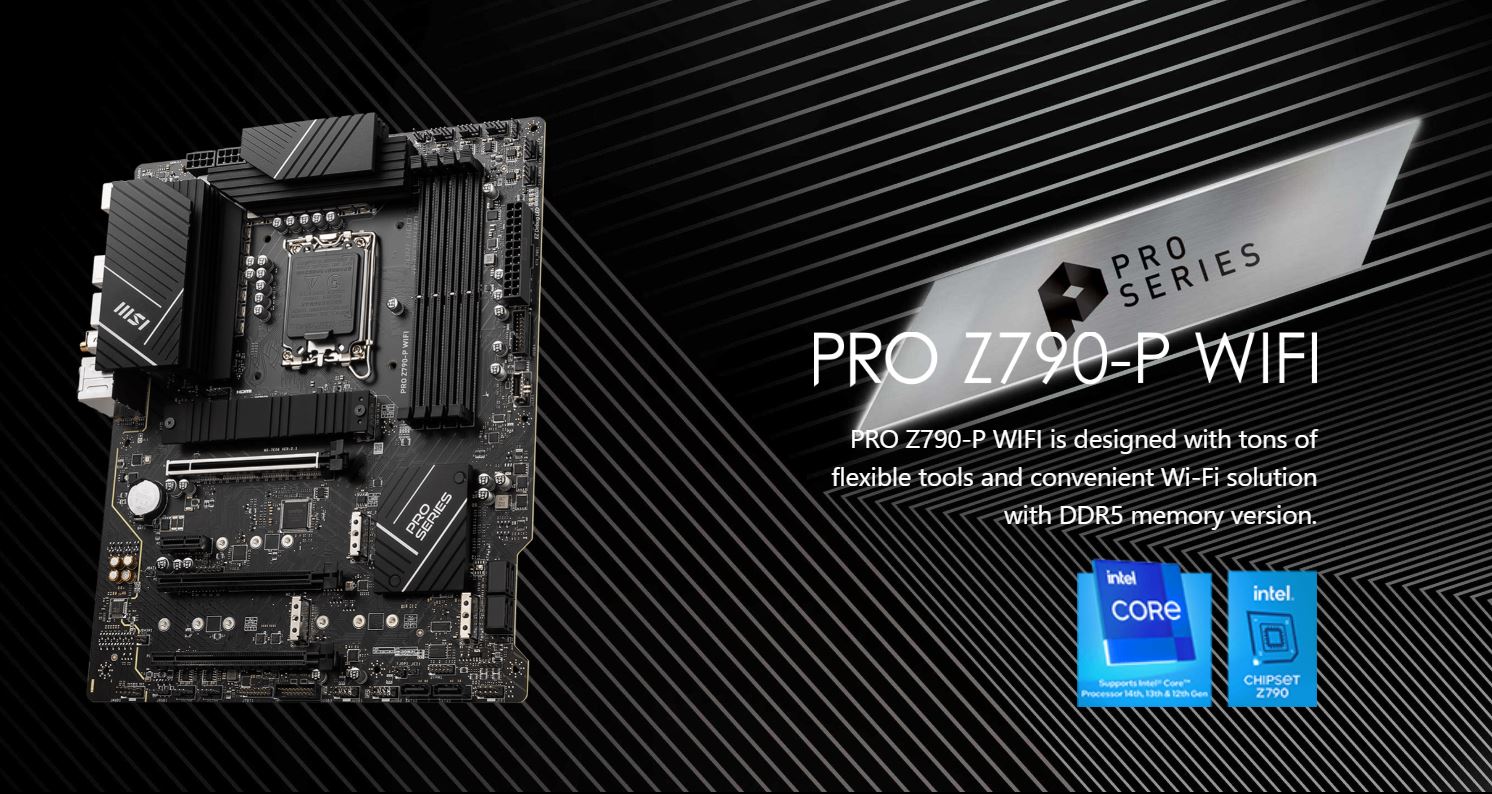

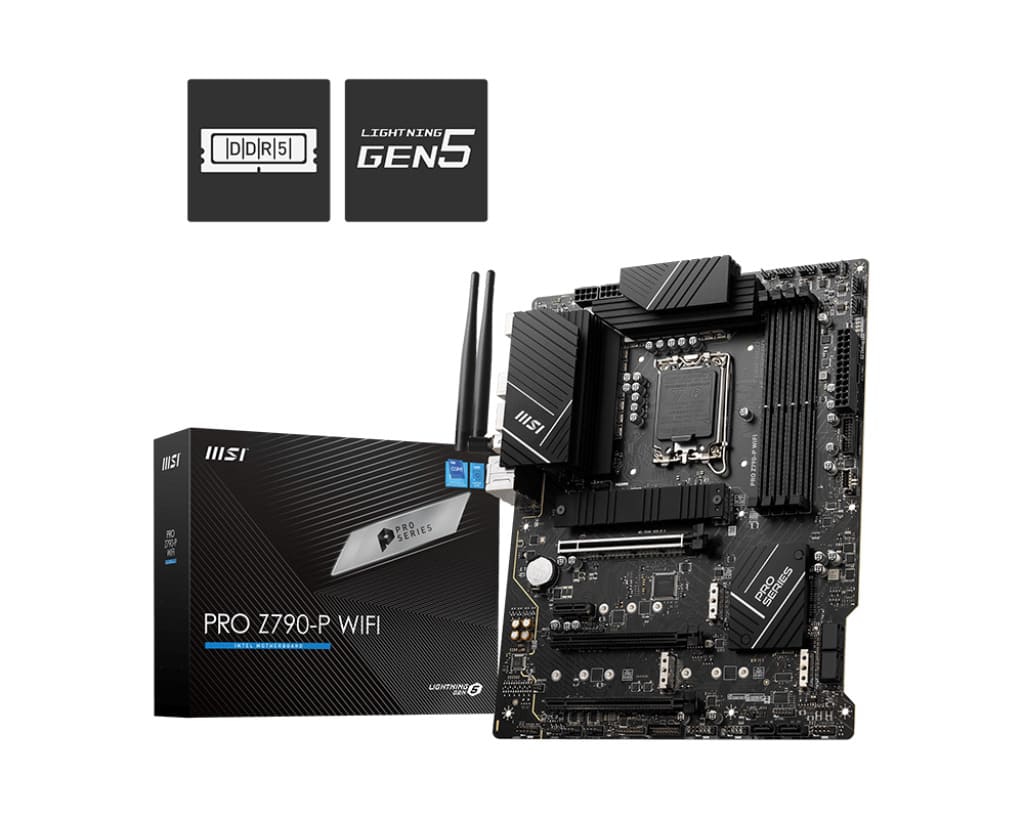

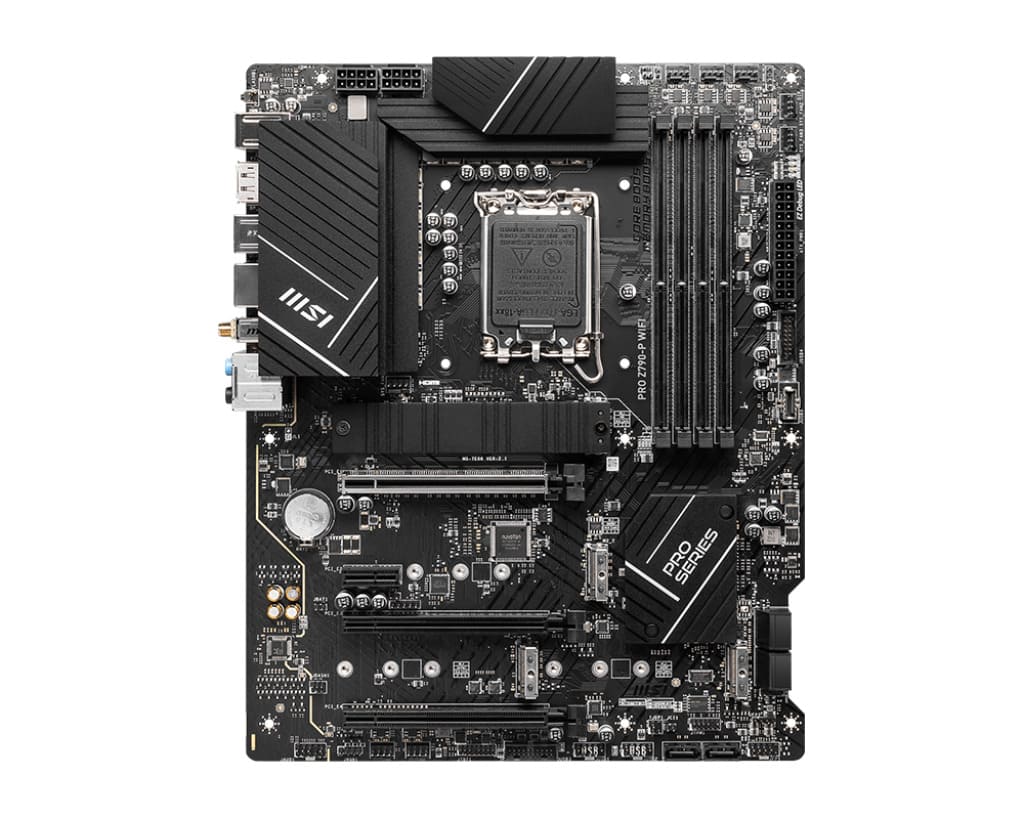

Mainboard MSI PRO Z790-P WIFI (LGA 1700, 4x DDR5, HDMI, Displayport, USB-C, M.2 PCIe 4.0, WiFi 6E, ATX)

(0 lượt đánh giá) Tình trạng: Còn hàng Bảo hành: 36 Tháng Chính Hãng

Chipset: Intel Z790

Socket: LGA 1700

Kích thước: ATX

Số khe RAM: 4 x DDR5 (tối đa 192GB)

Lưu trữ: 6 x SATA3 6Gb/s, 4 x M.2 (Hỗ trợ M.2 SATA/NVMe PCIe 4.0 x4)

Cổng xuất hình: 1 x HDMI 2.1, 1 x DisplayPort 1.4

Kết nối không dây: WiFi 6E, Bluetooth 5.3

Đọc thêm
Giá Bán: 4.990.000đ ( Giá đã bao gồm VAT ) MUA NGAY

GỌI NGAY 02363 872000 ĐỂ GIỮ HÀNG

    Điện thoại tư vấn - đặt hàng:

  • Thanh Hà - 0903 555 610
  • Ánh Vân - 0911 299 230
  • Hồng Hạnh - 0911 299 221
  • Bích Yên - 0904 678 594

    Địa chỉ mua hàng:

  • 152 Hàm Nghi, Thanh Khê, TP. Đà Nẵng
  • 52 Nguyễn Văn Linh, Hải Châu, TP. Đà Nẵng
  • 48 Hùng Vương, Phú Nhuận, TP. Huế
Đặc điểm nổi bật Đánh giá & Nhận xét Hỏi & Đáp Hình ảnh

Xem thêm

Thông số kỹ thuật

Hãng sản xuất

MSI

Loại sản phẩm

Bo mạch chủ

Mã sản phẩm

PRO Z790-P WIFI

Socket hỗ trợ

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

Chipset Intel Z790
Hỗ trợ RAM

4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Cổng xuất hình

1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Khe cắm mở rộng

3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Hỗ trợ ổ cứng 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 2.0 ports (Rear)
4x USB 2.0 ports (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

LAN

Intel® 2.5Gbps LAN

Kết nối không dây

Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Cổng kết nối bên trong

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

Tính năng LED

4x EZ Debug LED

Cổng kết nối phía sau

  1. Keyboard / Mouse
  2. DisplayPort
  3. USB 2.0
  4. 2.5G LAN
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. Flash BIOS Button
  8. USB 2.0
  9. HDMI™
  10. USB 3.2 Gen 1 5Gbps (Type-A)
  11. USB 3.2 Gen 2x2 20Gbps (Type-C)
  12. USB 3.2 Gen 2 10Gbps (Type-A)



Trong hộp bao gồm
Hệ thống

Support for Windows® 11 64-bit, Windows® 10 64-bit

Kích thước

ATX

243.84mmx304.8mm



Xem đầy đủ thông số
