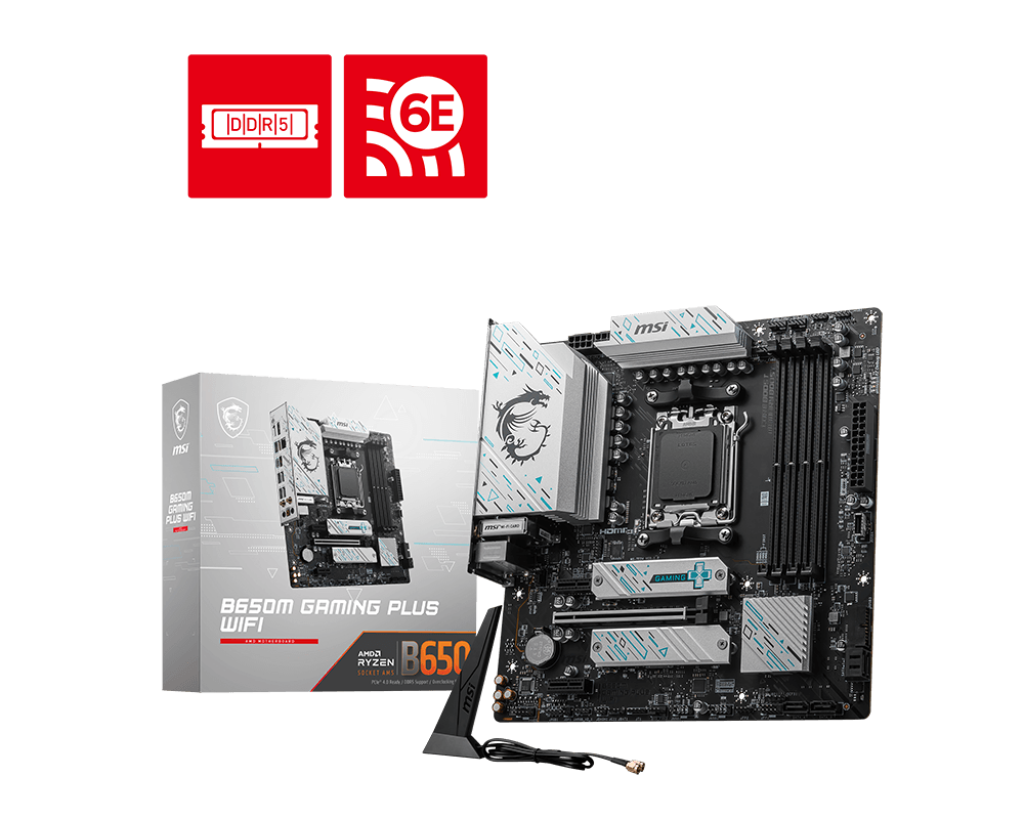

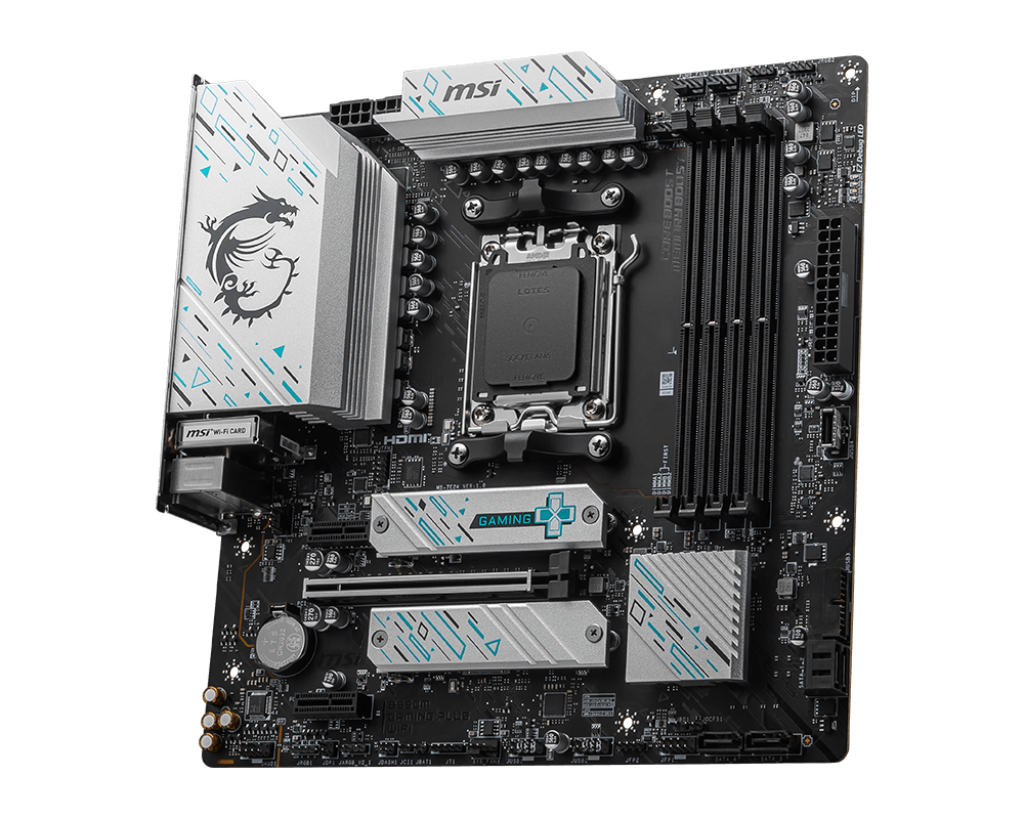

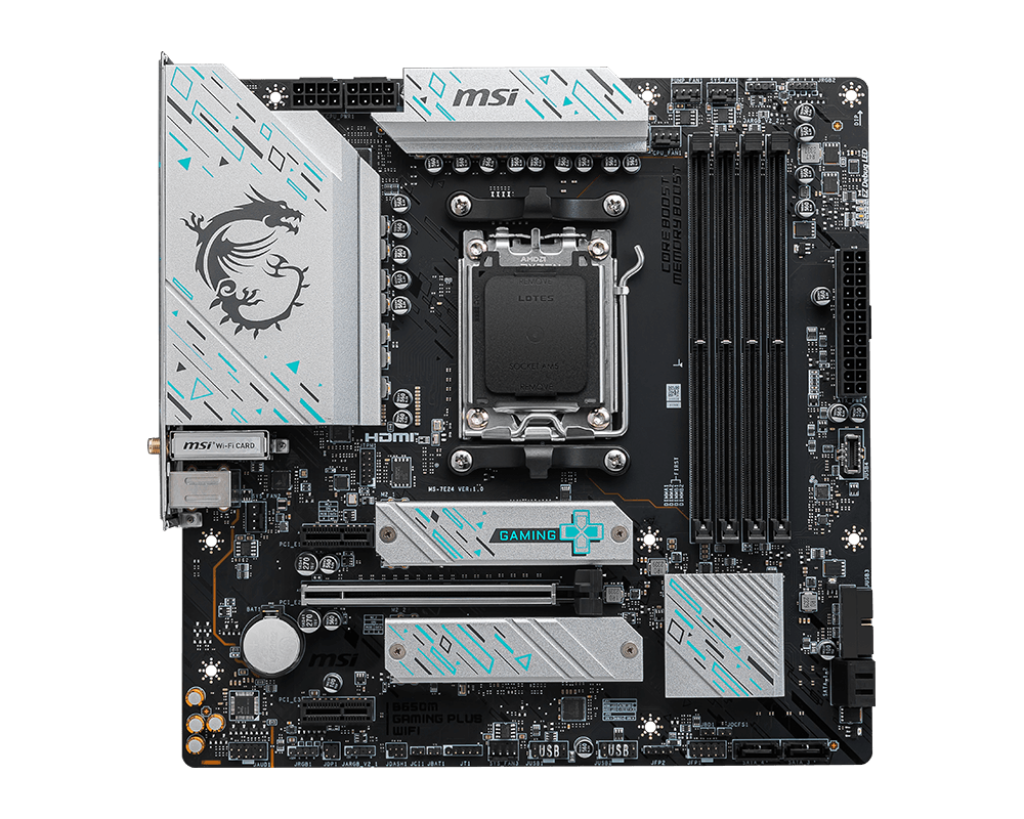

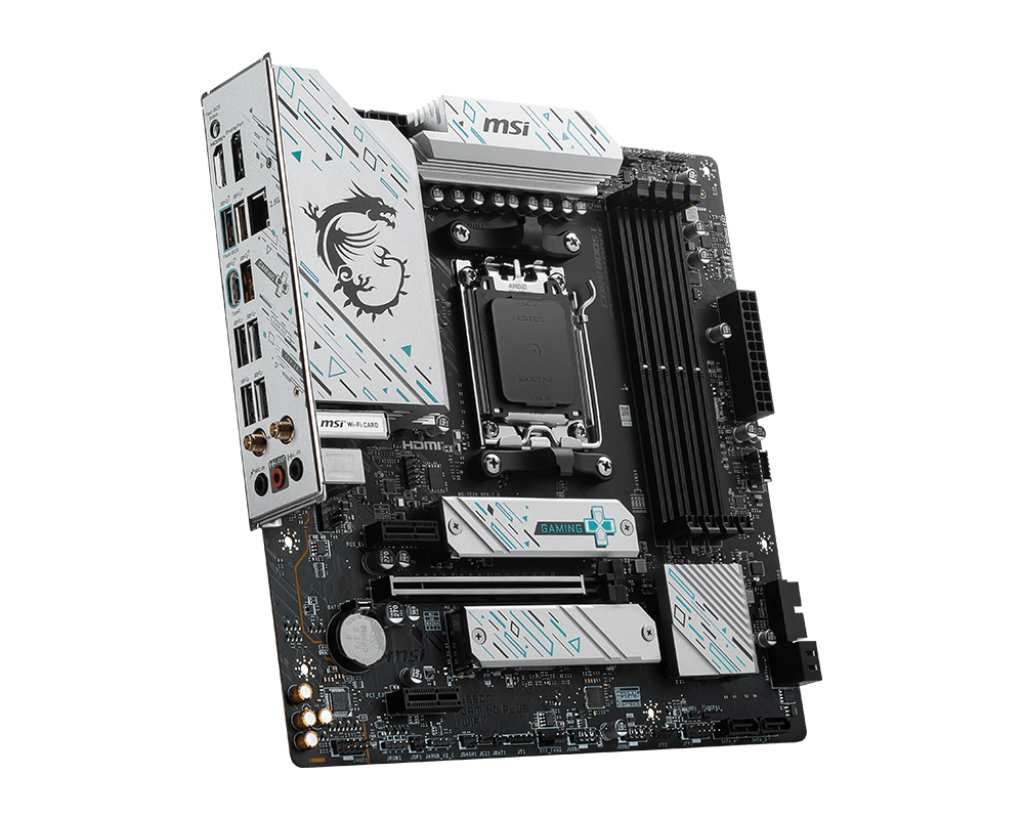

Mainboard MSI B650M GAMING PLUS WIFI (AM5, 4x DDR5, HDMI, Displayport, USB-C, M.2 PCIe 4.0, WiFi 6E)

(0 lượt đánh giá) Tình trạng: Tạm hết hàng Bảo hành: 36 tháng

Chipset: AMD B650. Socket: AM5

Kích thước: m-ATX

Số khe RAM: 4x DDR5 (Tối đa 256GB)

Ổ cứng hỗ trợ: 4x SATA 6Gb/s, 2x M.2 (hỗ trợ NVMe PCIe 4.0)

Cổng xuất hình: 1x HDMI 2.1, 1x Displayport 1.4

Kết nối không dây: WiFi 6E, Bluetooth 5.3

Đọc thêm

Giá Bán: 4.390.000đ ( Giá đã bao gồm VAT ) ĐẶT HÀNG THEO YÊU CẦU

GỌI NGAY 02363 872000 ĐỂ GIỮ HÀNG

Trợ giúp:

Điện thoại tư vấn - đặt hàng:

Ánh Vân - 0911 299 230
Hồng Hạnh - 0911 299 221

Địa chỉ mua hàng:

152 Hàm Nghi, Thanh Khê, TP. Đà Nẵng
52 Nguyễn Văn Linh, Hải Châu, TP. Đà Nẵng
48 Hùng Vương, Phú Nhuận, TP. Huế

Đánh giá & Nhận xét Hỏi & Đáp Hình ảnh

Thông số kỹ thuật

Hãng sản xuất	MSI
Loại sản phẩm	Bo mạch chủ
Mã sản phẩm	B650M GAMING PLUS WIFI
Socket hỗ trợ	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Chipset	AMD B650
Hỗ trợ RAM	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz
Cổng xuất hình	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Khe cắm mở rộng	1x PCI-E x16 slot • Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Hỗ trợ ổ cứng	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 8500/ 8300 Series processor is installed
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN	Realtek^® RTL8125BG 2.5Gbps LAN
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Cổng kết nối bên trong	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Kết nối không dây	Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED	4x EZ Debug LED

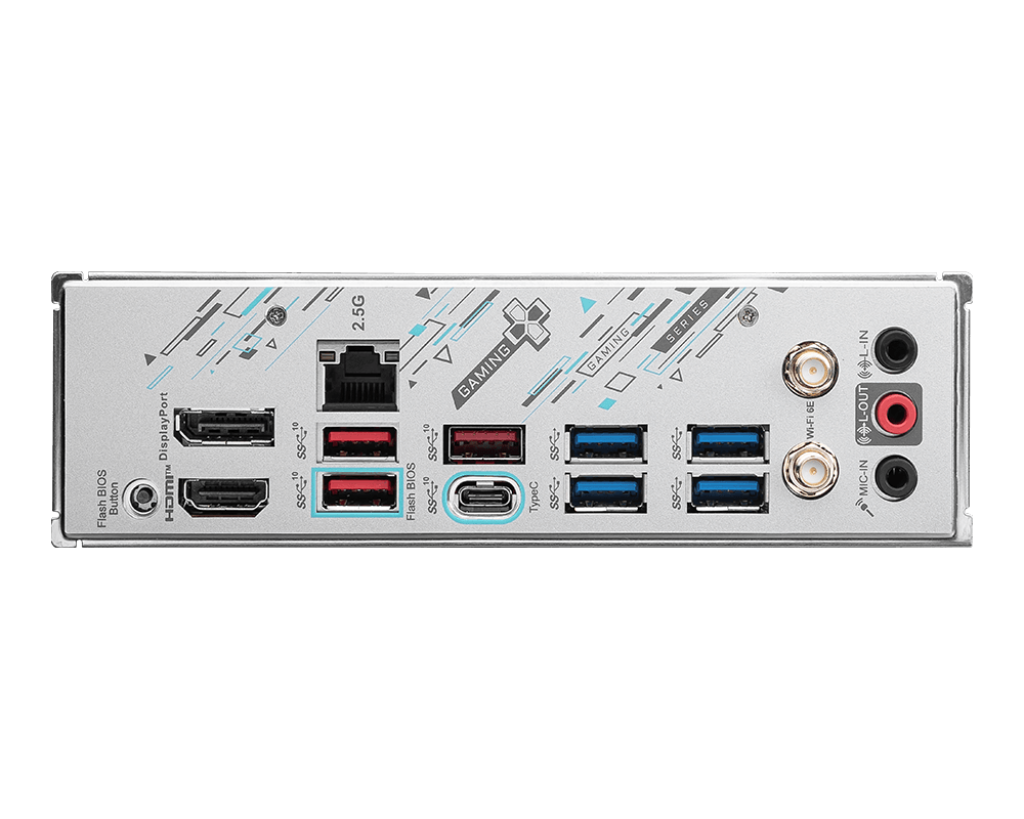

Cổng kết nối phía sau	DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Audio connectors
Trong hộp bao gồm
Hệ thống	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
Kích thước	mATX 243.84mmx243.84mm

Xem đầy đủ thông số
