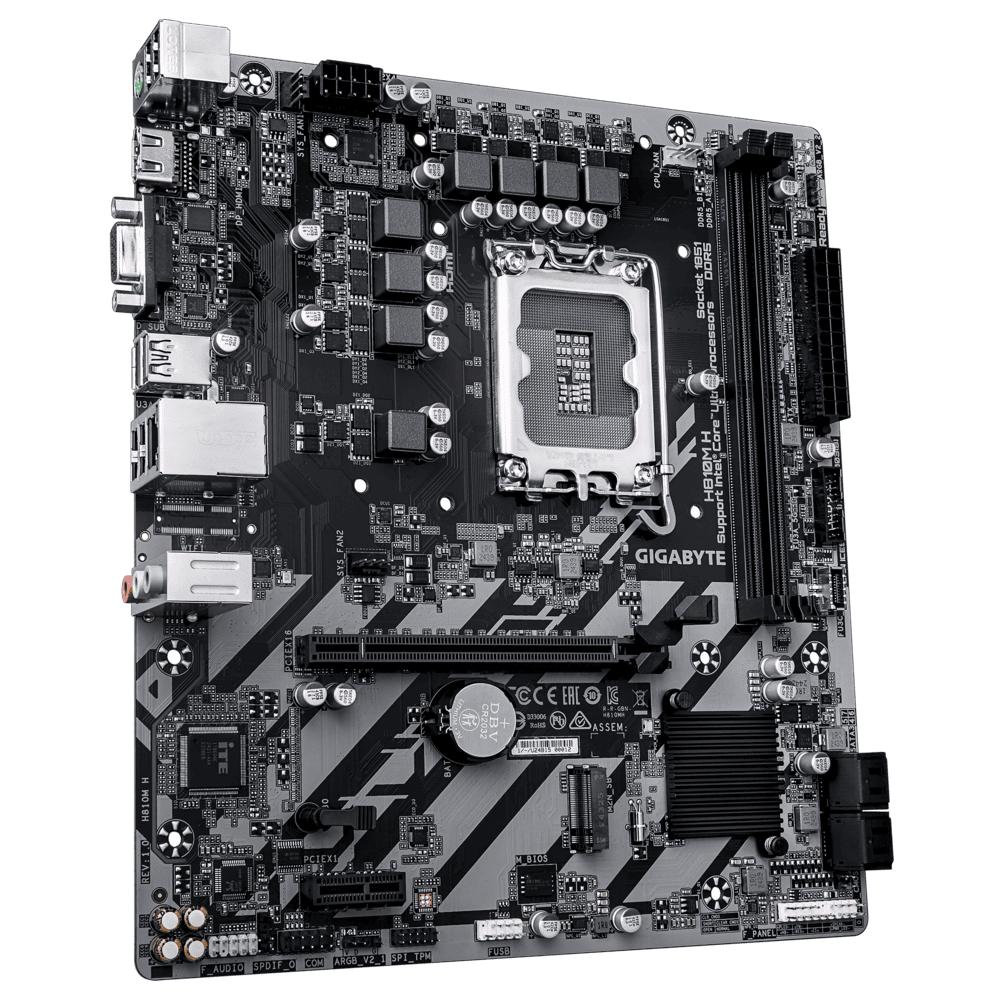

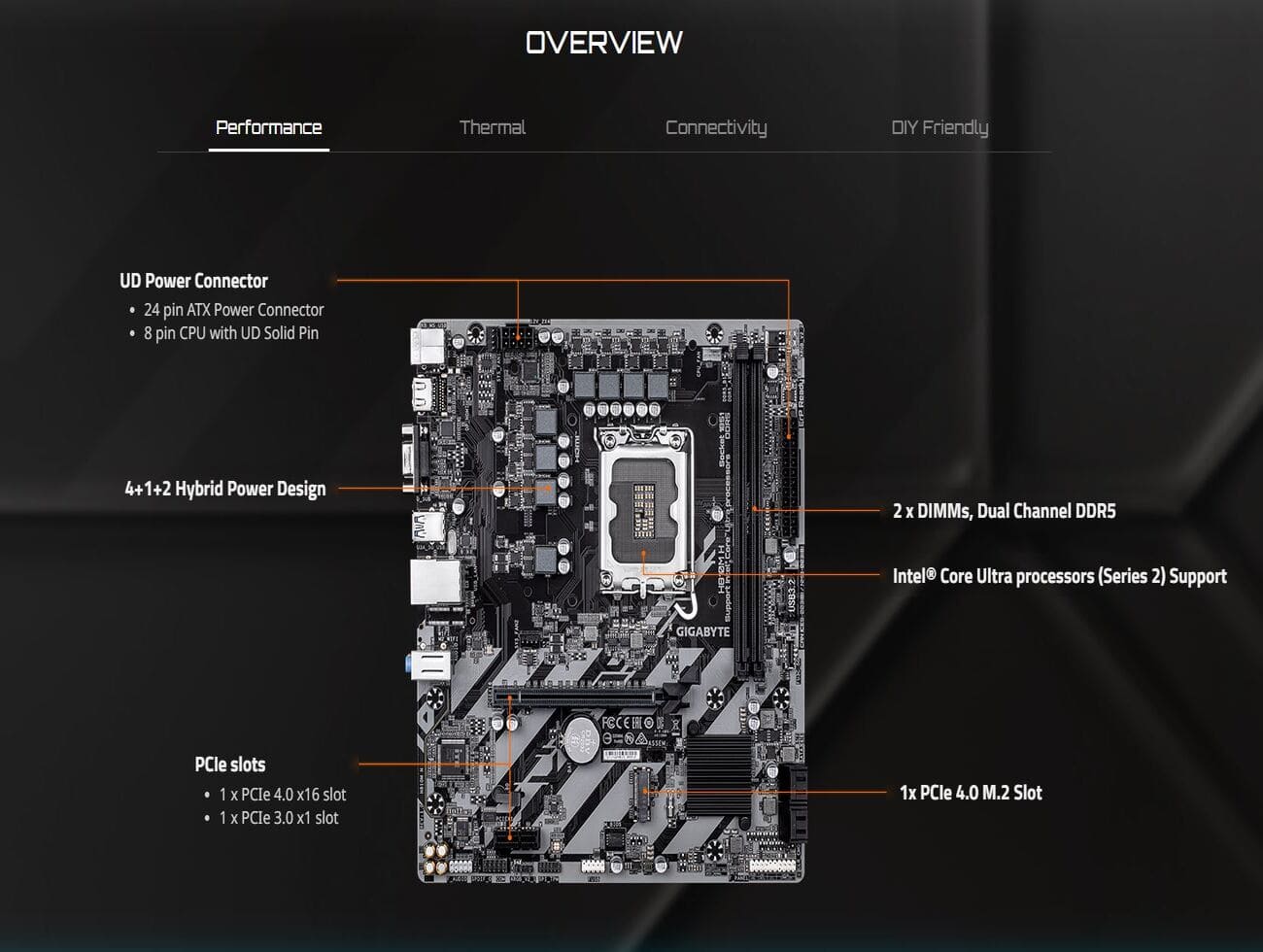

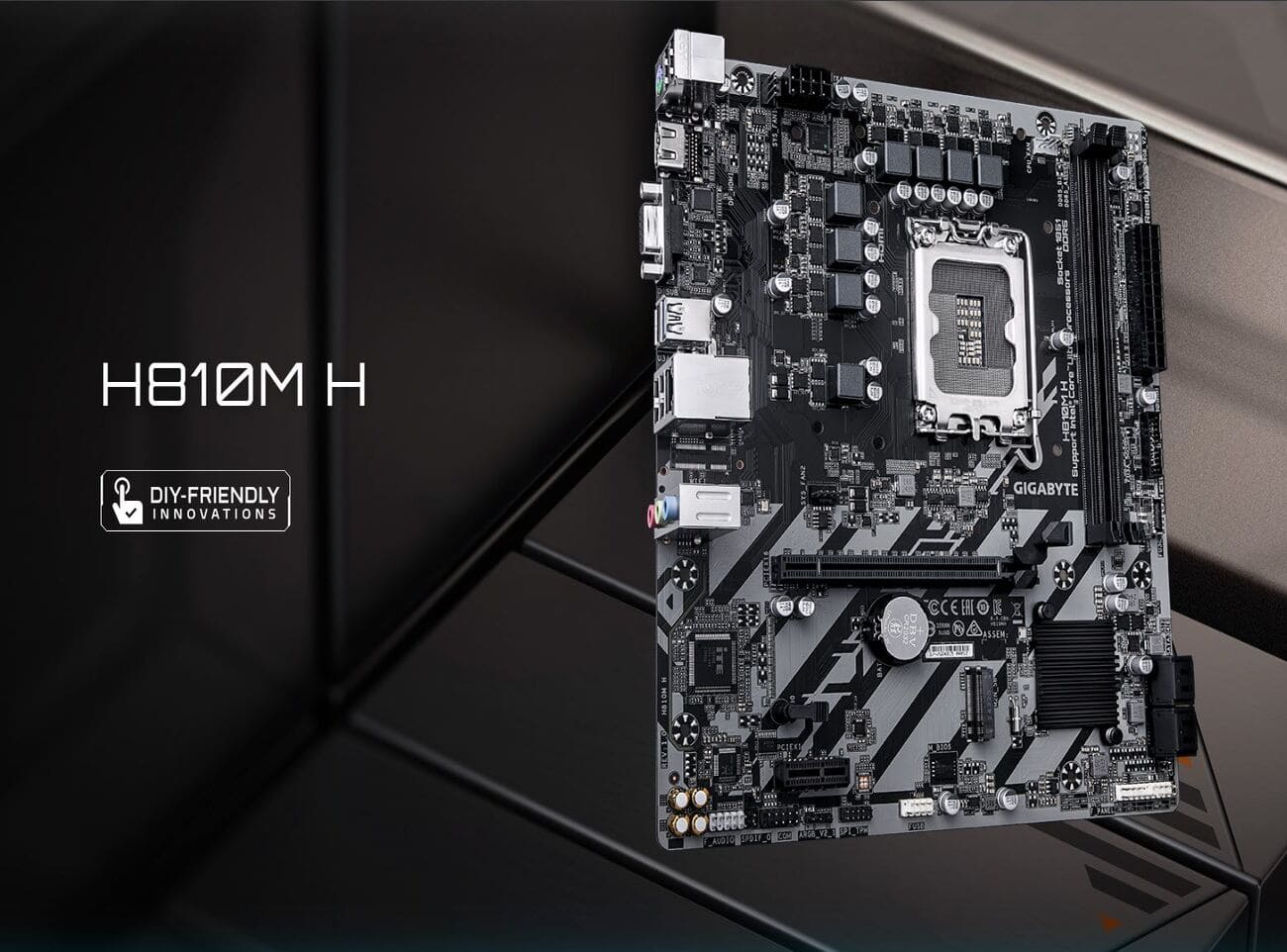

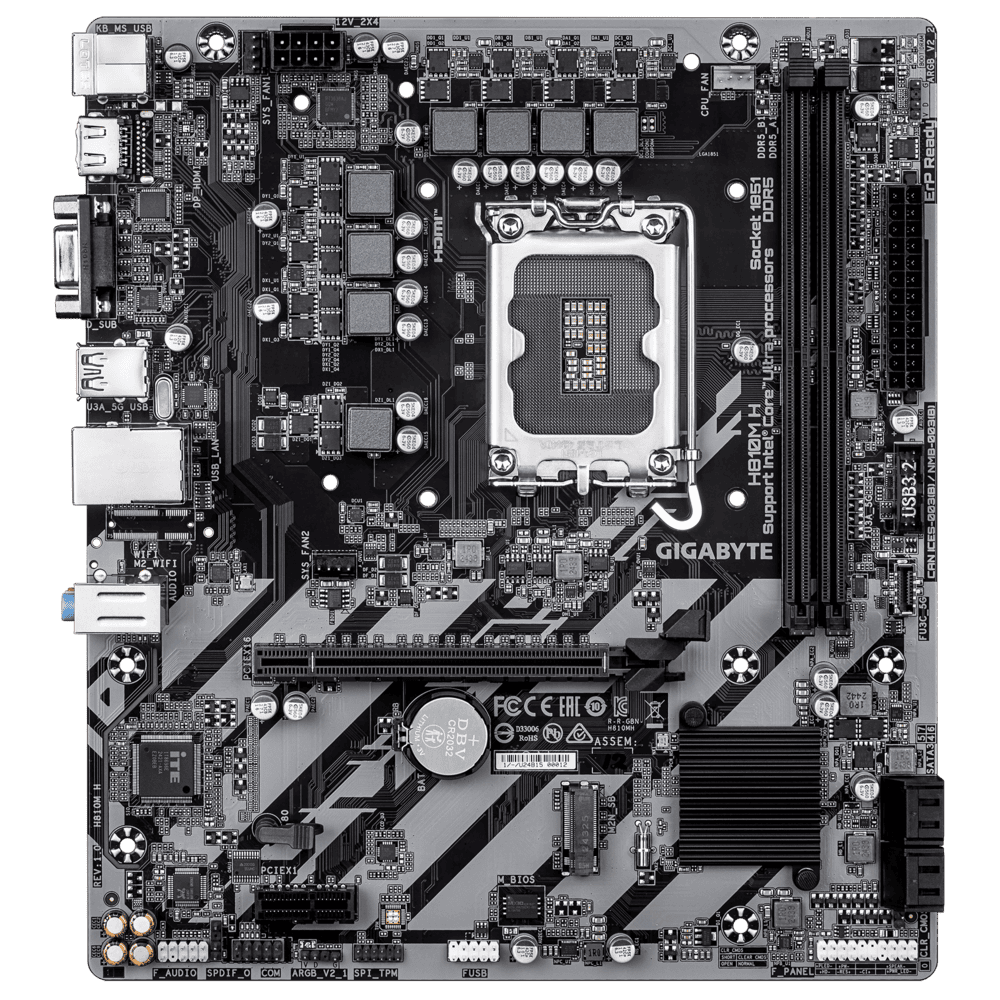

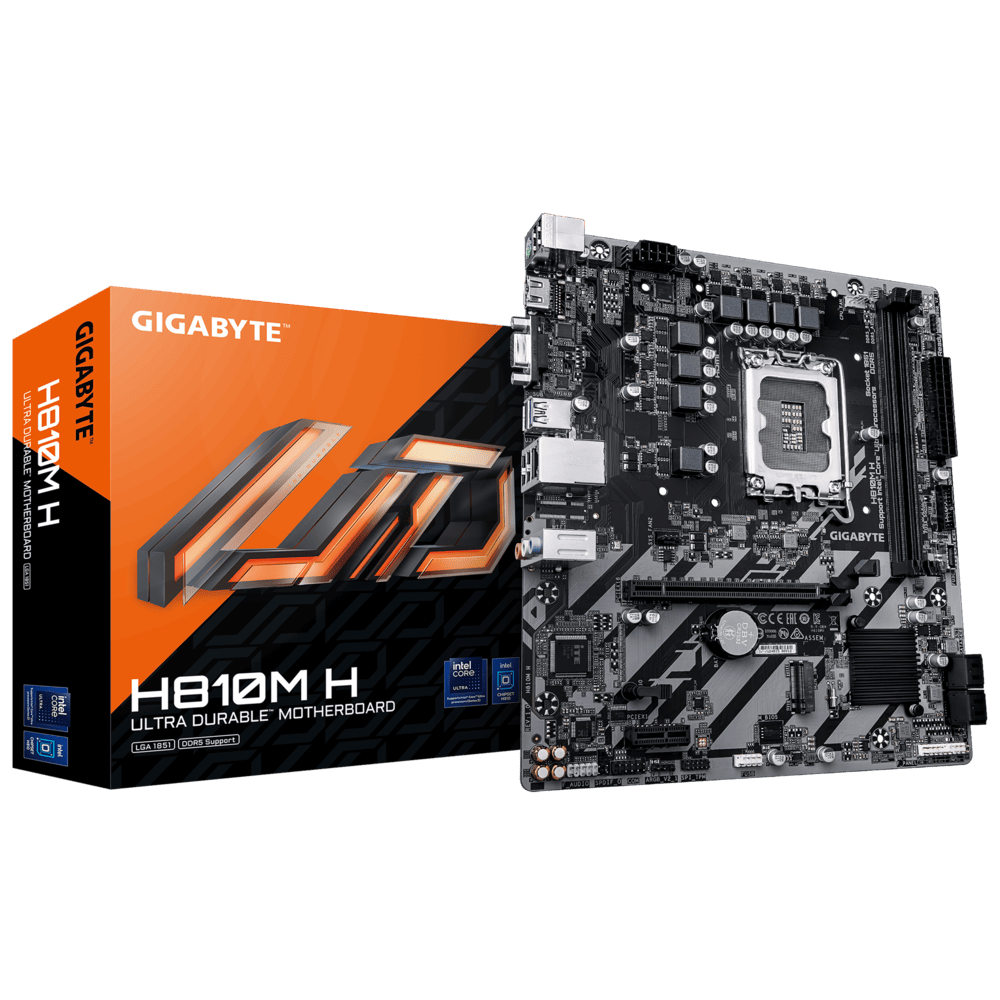

Mainboard Gigabyte H810M H (LGA 1851, 2x DDR5, HDMI, VGA, PCIe 4.0, m-ATX)

Hãng sản xuất

GIGABYTE

Loại sản phẩm

Bo mạch chủ, Mainboard

Mã sản phẩm

H810M H

Socket hỗ trợ

• LGA1851 socket: Support for Intel® Core™ Ultra Processors
  (Go to GIGABYTE's website for the latest CPU support list.)
  L3 cache varies with CPU

Chipset

• Intel® H810 Express Chipset

Bộ nhớ RAM hỗ trợ

• Support for DDR5 6400/5600 MT/s memory modules
  2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Cổng xuất hình

• Integrated Graphics Processor-Intel® HD Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.1 version and HDCP 2.3.


  - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  (Graphics specifications may vary depending on CPU support.)

Âm thanh

• Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


  Support for S/PDIF Out

LAN

• Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Khe mở rộng

• CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD.


  Chipset:
  - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Giao diện lưu trữ

• Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
  - 4 x SATA 6Gb/s connectors

USB

• Chipset:
  - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  - 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
  - 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
  Chipset+USB 2.0 Hub:
  - 4 x USB 2.0/1.1 ports on the back panel

Kết nối I/O bên trong

• 1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  2 x addressable RGB Gen2 LED strip headers
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x S/PDIF Out header
  1 x USB Type-C® header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x Clear CMOS jumper

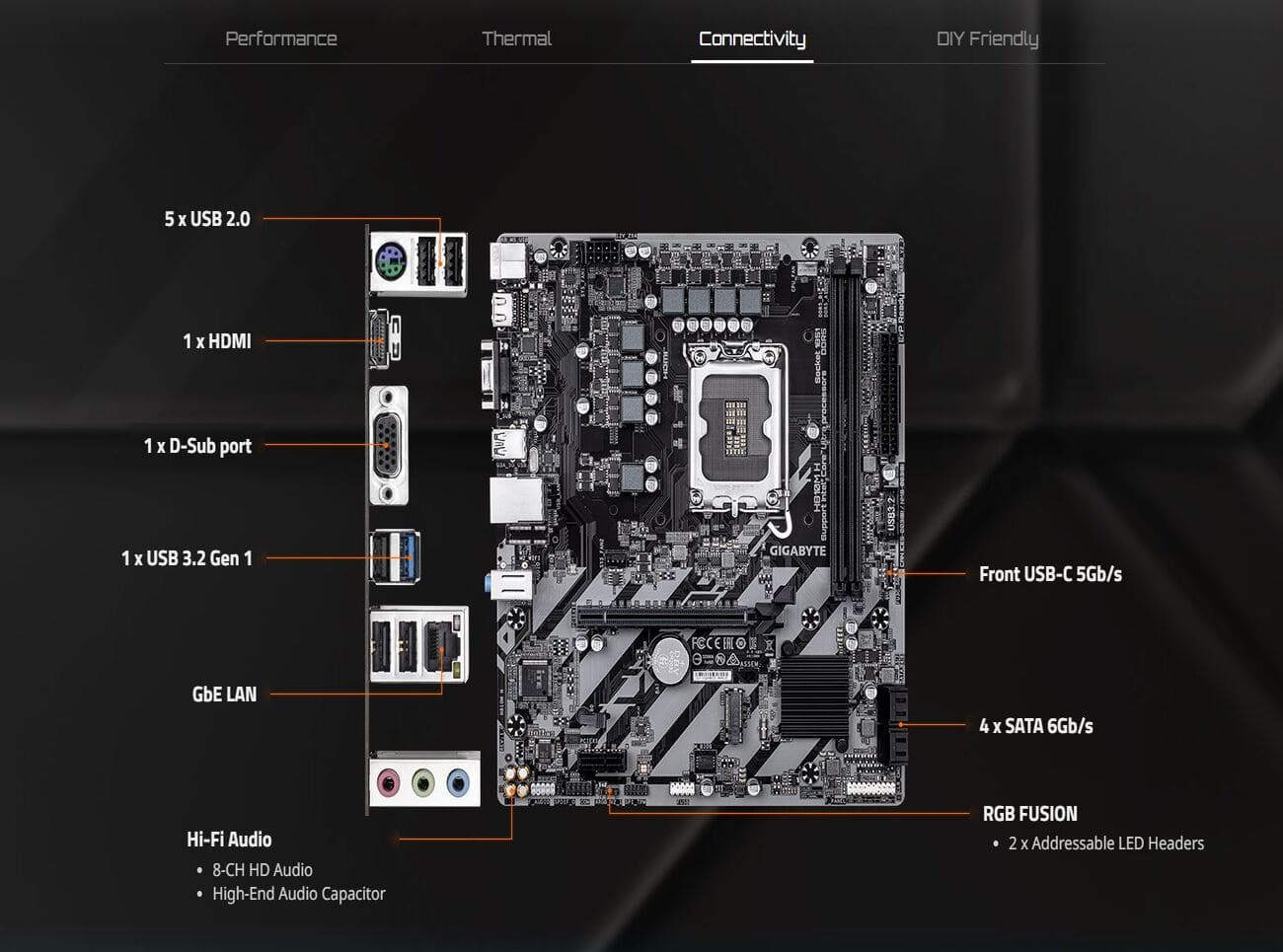

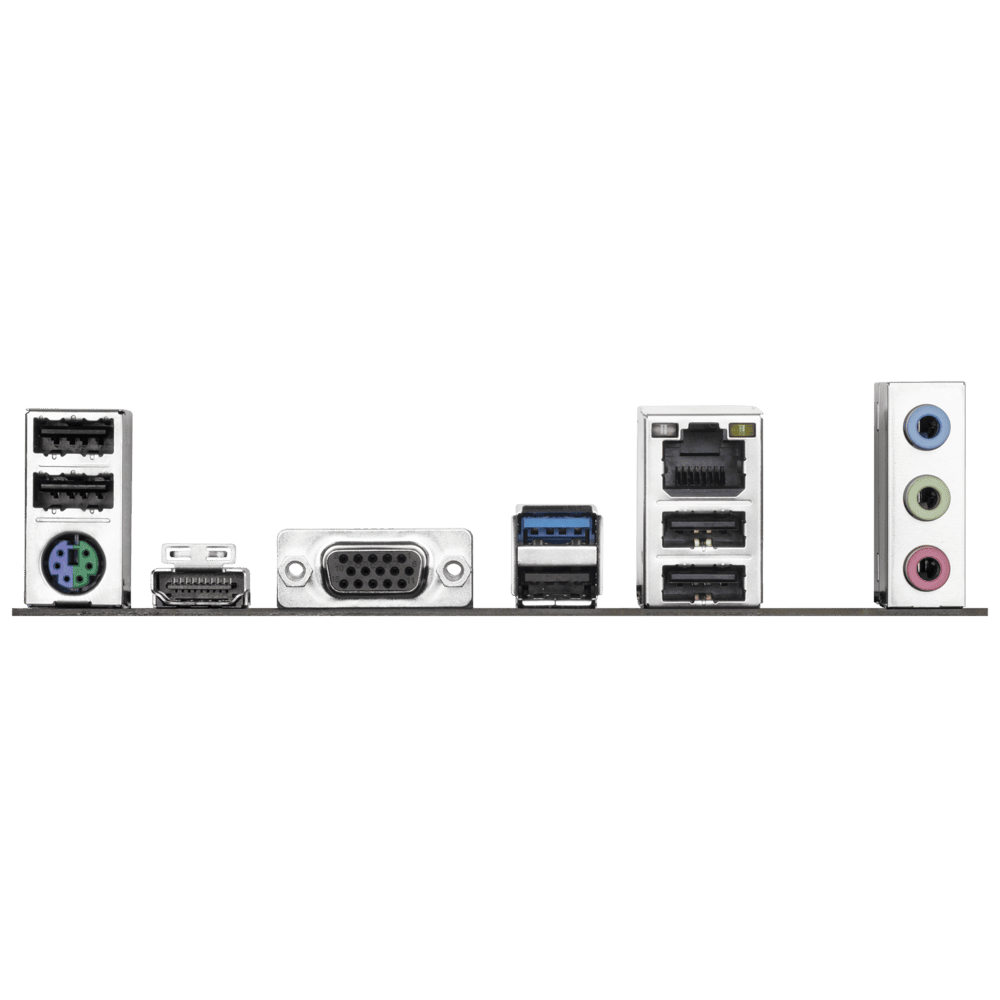

Cổng kết nối phía sau

• 1 x PS/2 keyboard/mouse port
  1 x HDMI port (Note)
  1 x D-Sub port
  1 x USB 3.2 Gen 1 port
  5 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks

  (Note) Actual support may vary by CPU.

Điều khiển I/O

iTE® I/O Controller Chip

Theo dõi phần cứng

• Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control

  * Whether the fan speed control function is supported will depend on the fan you install.

BIOS

• 1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng duy nhất

• Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  Support for Q-Flash
  Support for Smart Backup

Gói phần mềm

• Norton® Internet Security (OEM version)
  LAN bandwidth management software
  * Service discontinued as a result of contract termination by the software provider.

Hệ điều hành

• Support for Windows 11 64-bit
  Support for Windows 10 64-bit


  * The Intel® NPU driver and Intel® 800 Platform Performance Package Installer are only supported on Windows 11.

Form Factor

• Micro ATX Form Factor; 24.4cm x 21.5cm
