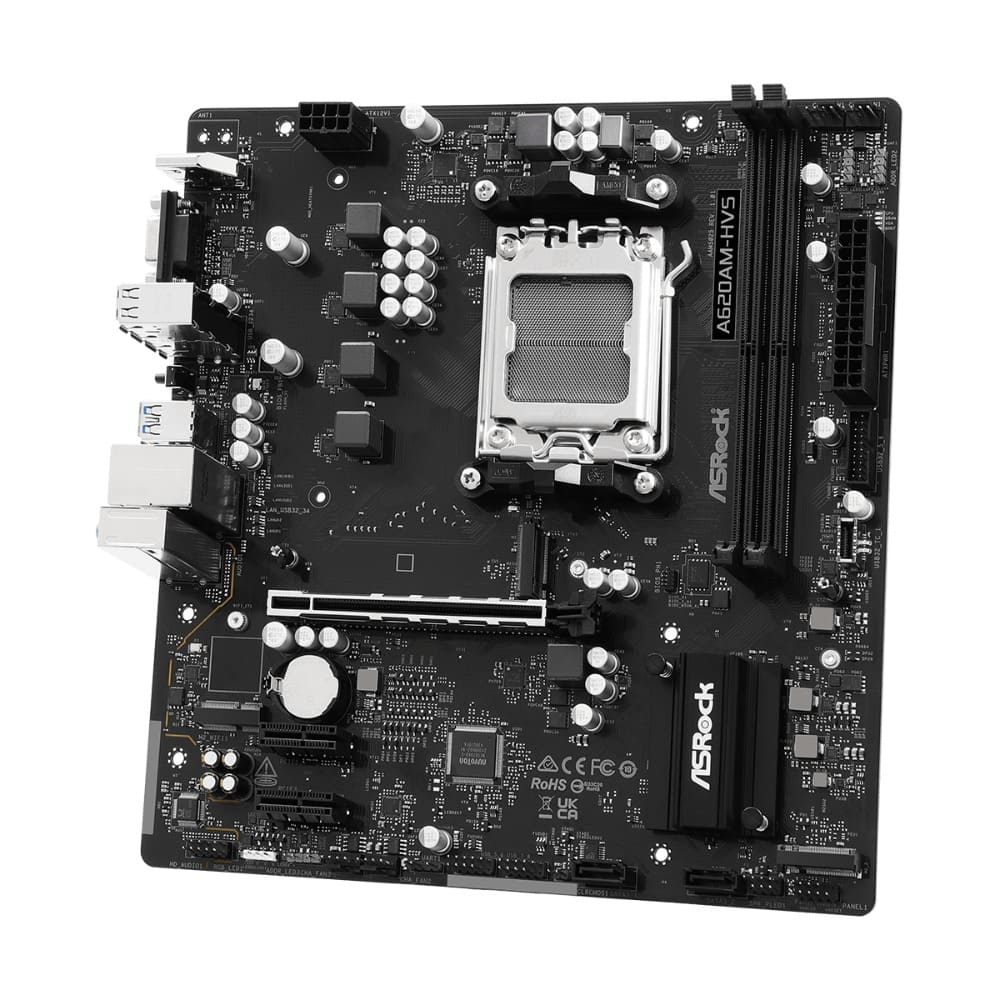

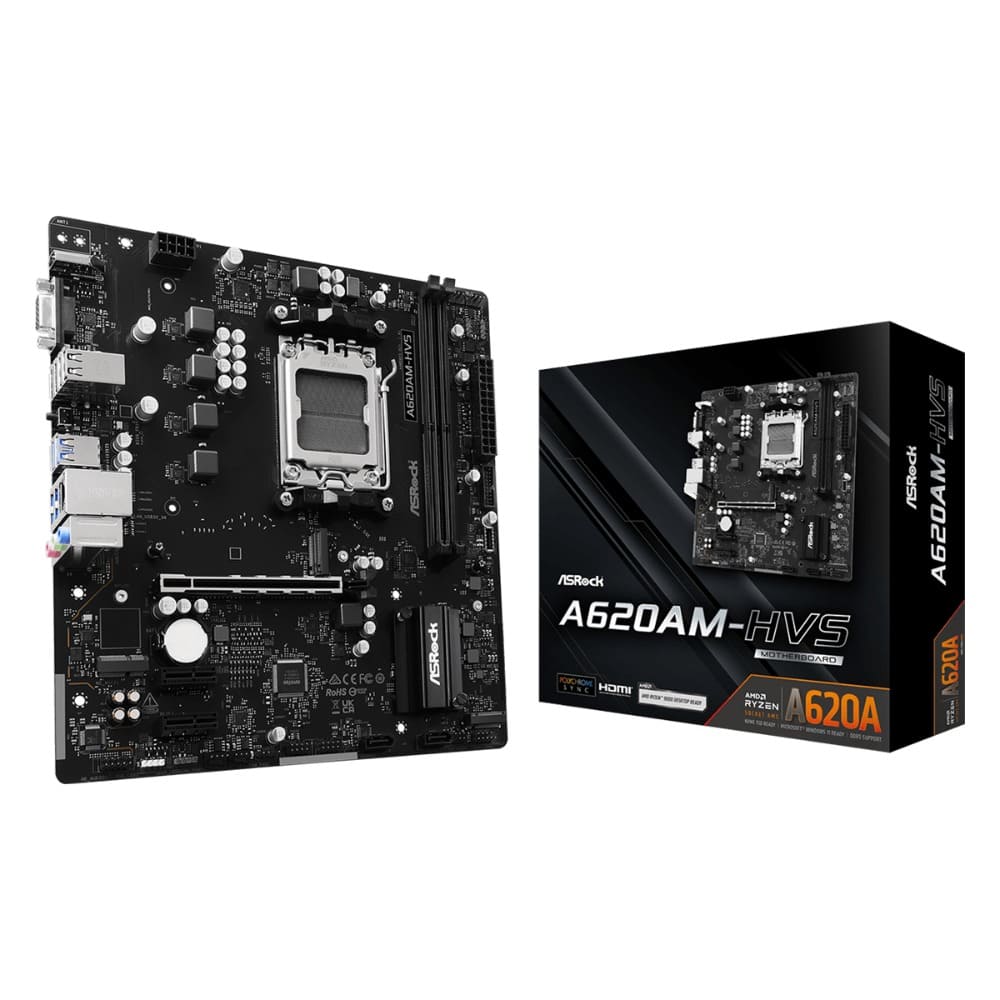

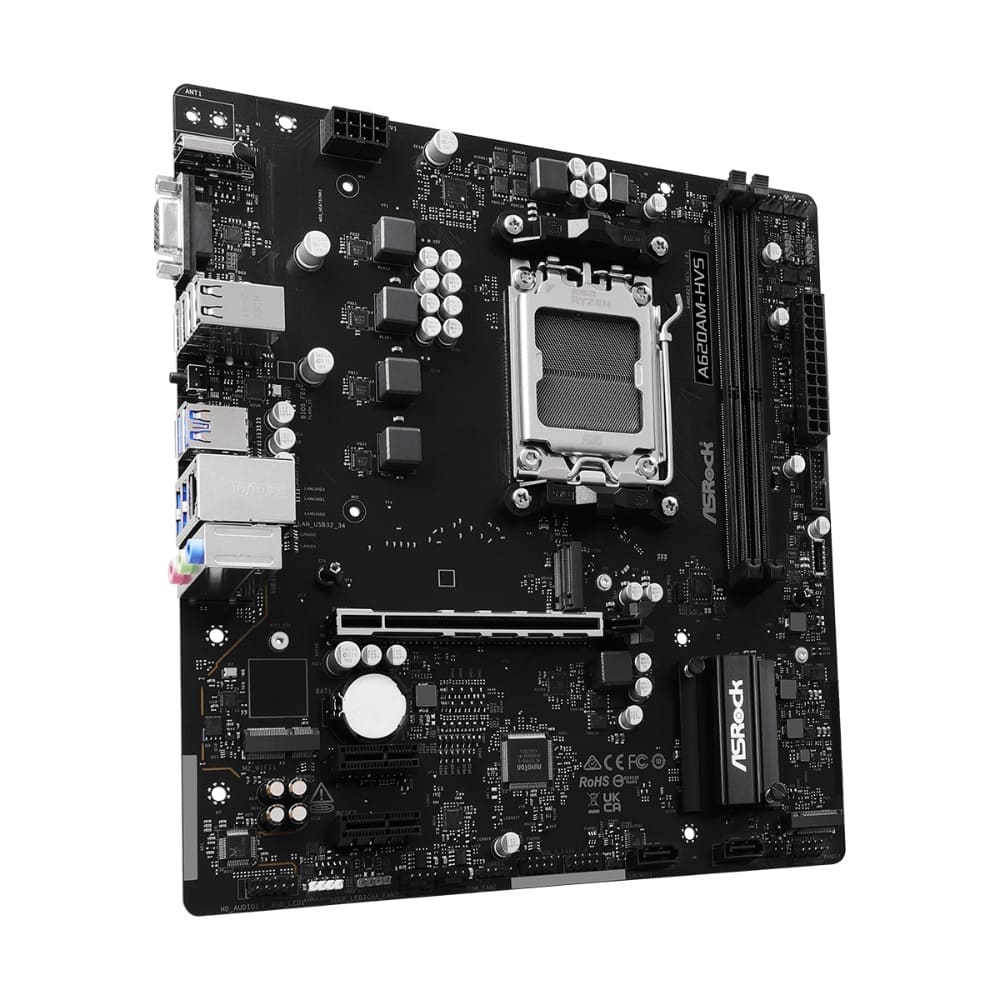

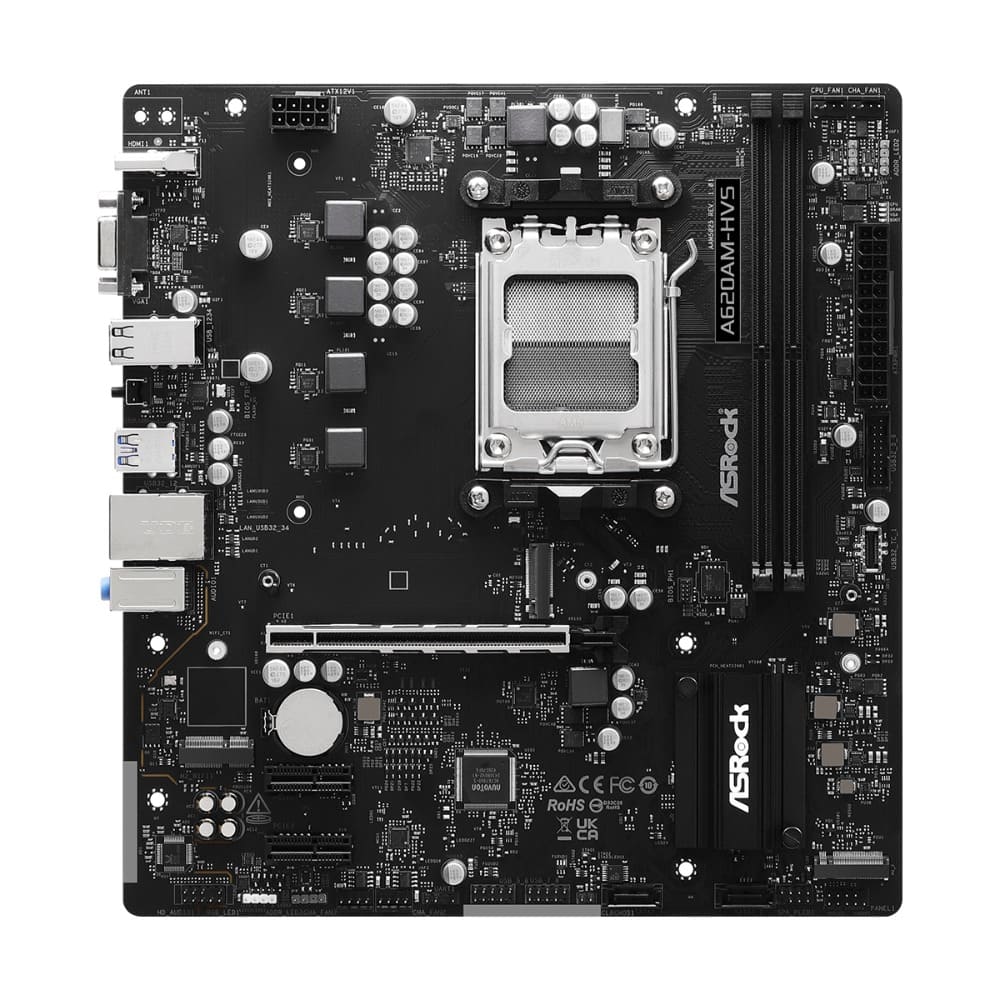

Mainboard ASRock A620AM-HVS (m-ATX, 2xDDR5, HDMI, VGA, PCIe 4.0)

(0 lượt đánh giá) Tình trạng: Còn hàng Bảo hành: 36 Tháng Chính Hãng

Chipset: AMD A620

Socket: AM5

Kích thước: m-ATX

Số khe RAM: 2x DDR5 (tối đa 128GB, O.C lên đến 6800MHz)

Khe mở rộng: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1

Lưu trữ: 2x SATA 6Gb/s, 1x M.2 PCIe 4.0 x4, 1x M.2 PCIe 3.0 x4/SATA

Cổng xuất hình: 1x HDMI, 1x VGA

Đọc thêm

Giá Bán: 1.990.000đ [Giá đã có VAT] MUA NGAY

GỌI NGAY 02363.888.000 ĐỂ ĐẶT HÀNG

Trợ giúp:

Điện thoại tư vấn - đặt hàng:

Ánh Vân - 0911 299 230
Thị Mai - 0911 299 220

Địa chỉ mua hàng:

152 Hàm Nghi, Thanh Khê, TP. Đà Nẵng
52 Nguyễn Văn Linh, Hải Châu, TP. Đà Nẵng
48 Hùng Vương, Phú Nhuận, TP. Huế

Đánh giá & Nhận xét Hỏi & Đáp Hình ảnh

THÔNG SỐ KỸ THUẬT

Hãng sản xuất	ASROCK
Loại sản phẩm	Bo mạch chủ máy tính
Mã sản phẩm	A520M-HVS
Tính năng chính	Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 4+1+1 Power Phase, Dr.MOS for Vcore EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
CPU	- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* *Please refer to CPU Support List on ASRock's website for more information. The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset	- AMD A620A
Bộ nhớ RAM	- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)* - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules *Please refer to Memory Support List on ASRock's website for more information.
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Cổng xuất hình	Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Âm thanh	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN	- Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H
Khe mở rộng	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) *PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. Supports NVMe SSD as boot disks
Khe ổ cứng	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 2 x SATA3 6.0 Gb/s Connectors *M2_1 is the first priority for M.2 installation. Supports NVMe SSD as boot disks
RAID	- Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10
USB	CPU: - 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34)) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front) - 8 x USB 2.0 (4 Rear, 4 Front) *All USB ports support ESD Protection
Cổng kết nối bên trong	- 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip **CPU_FAN1 supports the fan power up to 1A (12W). CHA_FAN1~3/WP support the fan power up to 3A (36W). CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

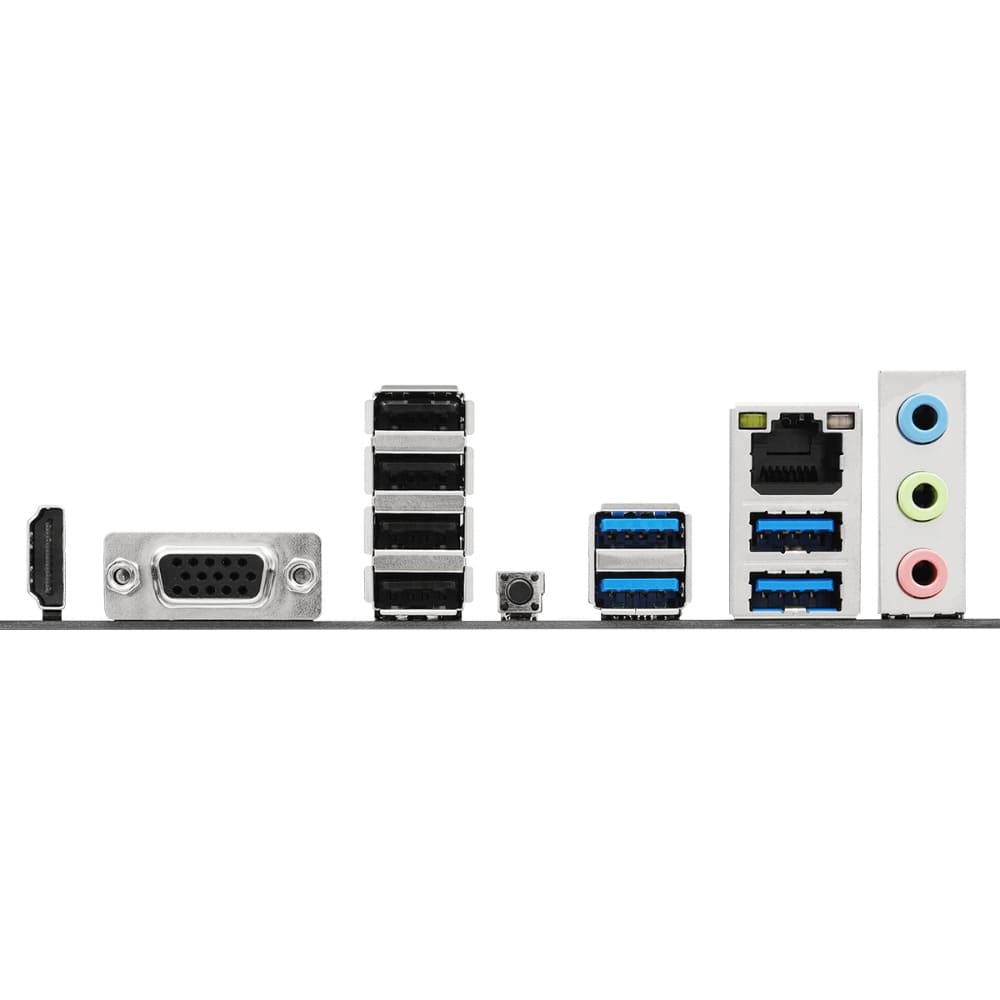

Cổng kết nối phía sau	- 2 x Antenna Mounting Points - 1 x D-Sub Port - 1 x HDMI Port - 4 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
Phần mềm và UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Phụ kiện	- 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket
Form Factor	- Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm - 2oz Copper PCB
Hệ điều hành	- Microsoft Windows^® 10 64-bit / 11 64-bit
Chứng chỉ	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

XEM ĐẦY ĐỦ THÔNG SỐ
